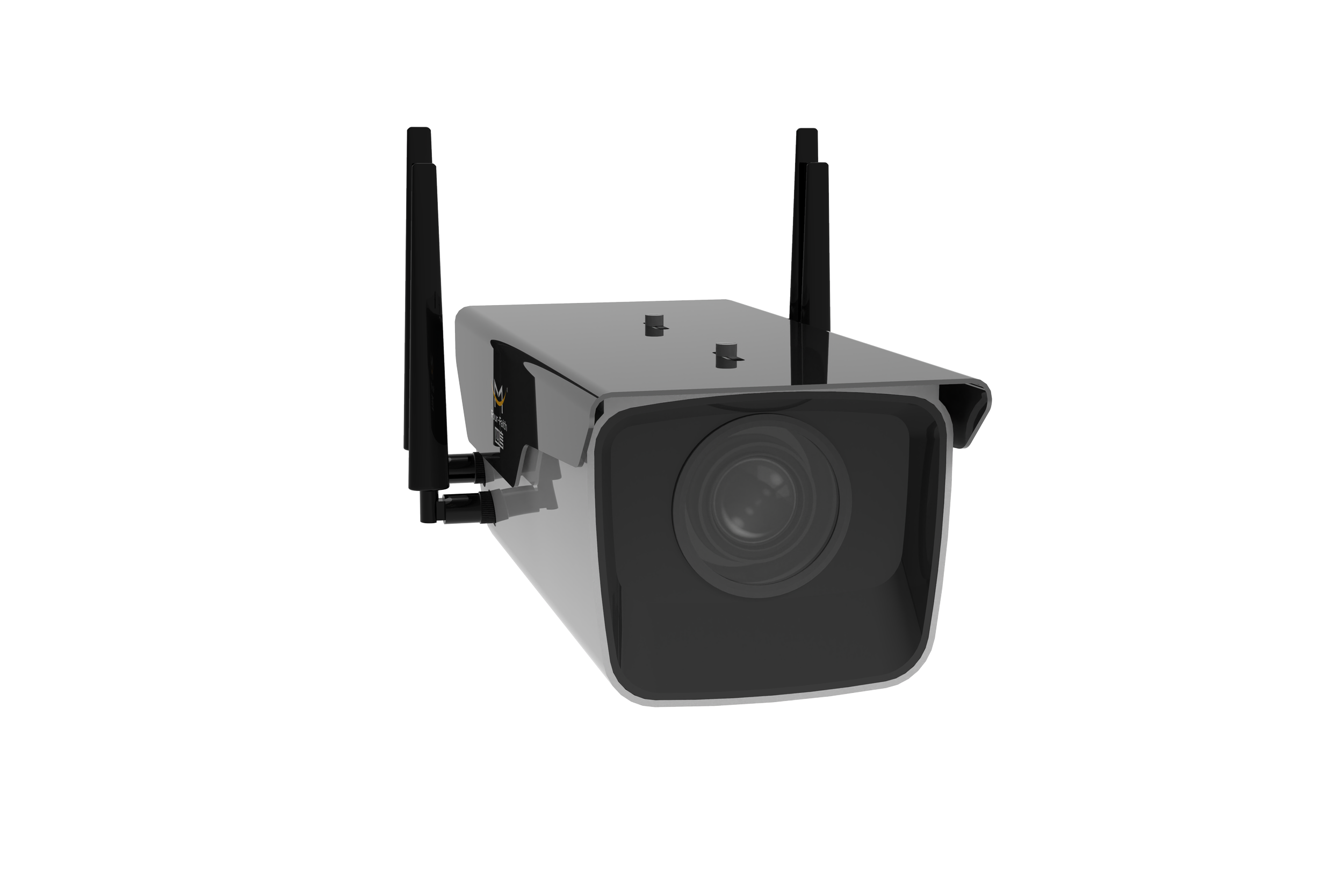

5G CBRS Wireless IoT HD Bullet 5MP AI Camera 16x AF
The F-SC241 is a cutting-edge IoT RTU (Remote Terminal Unit) camera designed for industrial-grade IoT applications. This device is a key component of intelligent IoT surveillance systems, providing high-definition video with low latency over long distances via industrial 4G/5G CBRS modules. Equipped with 5G high-speed wireless communication, this camera offers a high data transmission rate and broader signal coverage, ensuring smooth remote monitoring video streams.
Key Features:
High-Performance Imaging: Equipped with a 1/2.8″ Progressive Scan CMOS sensor, offering resolutions up to 5MP (in development) for superior image quality.
Advanced Connectivity: Supports various IoT protocols and embedded RTU functions for active sensor data acquisition.
Robust Build: IP67-rated metal casing for durability in harsh industrial environments and a top-level SONY CMOS sensor for exceptional image capture.
AI Video Analysis: Capable of real-time AI video analysis at the front end, enhancing surveillance capabilities.
Energy-Efficient: Optimized H.265 video compression reduces bandwidth and storage usage by 50% compared to H.264.
Highly customizable IoT application ports, independent development of hardware and software, and AI image recognition technology
Versatile Integration: Standard RS232, RS485, and Ethernet interfaces for easy integration into existing systems.
Specifications:
Network Features: Includes Ethernet and network storage support, along with protocols like Onvif Profile S, GB/T28181-2016, Modbus RTU, MQTT, and more.
Available with 5MP fixed lends or 16x autofocus lens
Installation Flexibility: Supports DIN-rail and pole-mounted installations.
Operating Conditions: Functions within a temperature range of- 40°F to 167°F (-40 °C to 75°C) and can handle humidity up to 90% non-condensing.
Power Efficiency: PoE (802.3at) enabled, ensuring low power consumption in various modes.
Dimensions: Approximately 10.24 x 5.51 x 4.33 inches (260 x 140 x 110 mm).
Weight: Approximately 9.92 pounds (4.5 kg).
Applications:
Ideal for industrial settings, smart city infrastructure, and advanced IoT surveillance systems, the F-SC241 offers robust, intelligent surveillance capabilities that ensure security and operational efficiency in challenging environments.
